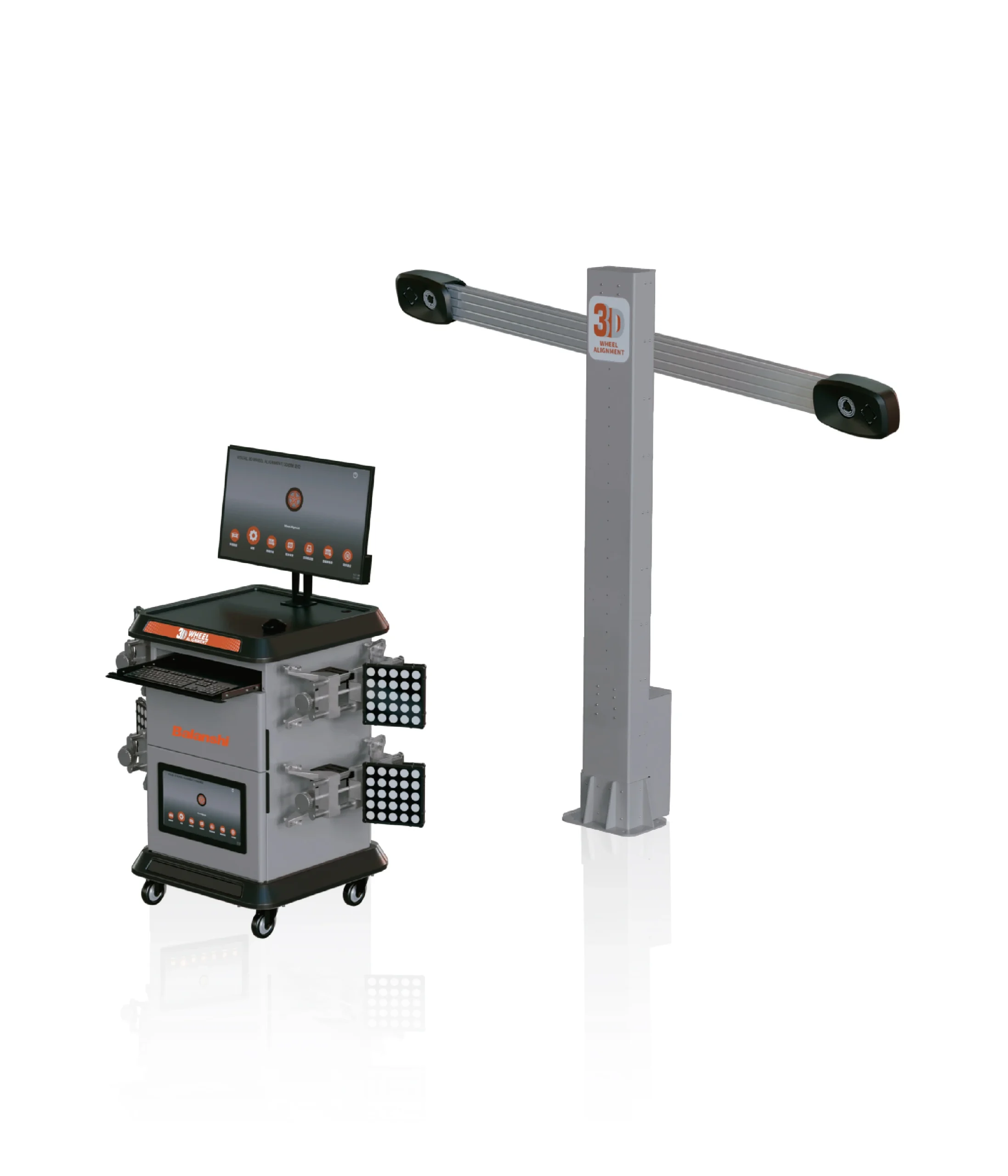

BLS WA6023AUTO PRO 3D Automatic Wheel Alignment Machine with 5MP Industrial Cameras, Professional Garage Alignment System

BLS WA6023AUTO PRO

Professional 3D Automatic Wheel Alignment System – Efficiency Redefined

The BALANSHI BLS WA6023AUTO PRO is a top-tier 3D wheel alignment solution designed for high-volume automotive service centers. By combining 5MP high-definition imaging with an intelligent automated beam, it delivers unmatched precision and speed in vehicle diagnostics.

Advanced Technical Specifications:

  • Imaging System: Dual 5MP Industrial Cameras
  • Display Precision: 1′ / 0.01° / 0.1mm
  • Tracking: Auto-Adaptive Height Adjustment Beam
  • Voltage: 110V-220V 50/60Hz
  • Compatibility: Supports wheelbase up to 4500mm

Key Features for Professional Garages:

1. Intelligent Software: The system features a new intelligent measurement system with an intuitive interface, making complex alignment tasks simple even for new technicians.

2. Smart Connectivity: Equipped with a built-in printer for instant reporting and supports dual-display setups to enhance workshop visibility.

3. Rugged Targets: The maintenance-free mini targets are designed to withstand the harsh environment of a busy repair shop while maintaining high reflection accuracy.

Detailed Measurement Range:

Position Angle Measurement Range Measurement Accuracy
Total Toe ±20° ±2′
Camber Angle ±10° ±4.5′
Caster Angle ±20° ±6′
King Pin Inclination ±20° ±6′
SKU: BLS WA6023AUTO PRO Category:

Description

BALANSHI BLS WA6023AUTO PRO 3D Automatic Wheel Alignment Machine with 5MP Industrial Cameras, Professional Garage Alignment System with Auto-Adaptive Tracking Beam, Real-Time Database & Dual Display Support

Technical Data:

Model BLS WA6023AUTO PRO
Power supply 110-220V,50/60Hz
Position Angle Measurement Range Measurement Accuracy Max Measurement Range
Display Precision / 1’/0.01°/0.1mm /
Total Toe ±20° ±2′ ±45°
Individual Toe ±10° ±1′ ±45°
Camber ±15° ±1.5′ ±45°
Caster ±20° ±6′ ±45°
King-Pin ±20° ±6′ ±45°
Set Back ±5° ±2′ ±45°
Thrust Angle ±5° ±2′ ±45°
Track Width <2400 mm ±2.5mm 1400mm-2500mm
Wheel Base <3750 mm ±2.5mm 1950mm-4000mm

Function & Detail:

  1. Precision 5mp industrial cameras: Engineered with high-resolution 5mp industrial-grade cameras, this 3d wheel alignment machine captures target movement with extreme clarity. The advanced optical system ensures consistent measurement accuracy, providing a display precision of 1’/0.01° and 0.1mm for professional-grade results.
  2. Auto-adaptive tracking system: Boost workshop productivity with the intelligent automatic tracking beam. The camera beam adjusts its height automatically to synchronize with the vehicle’s lift position, eliminating manual recalibration and allowing technicians to focus on the adjustment process.
  3. Comprehensive vehicle database: Access an extensive, built-in global vehicle database that is updated regularly to include the latest car models. It supports custom vehicle entry, making it versatile for passenger cars, SUVs, and light trucks, ensuring you always have the right specs for every job.
  4. Dual-screen & multi-display support: Designed for modern shop layouts, the system supports dual-screen displays and secondary mobile monitor connectivity. This allows technicians to monitor live data from under the vehicle or from different angles, significantly speeding up the alignment workflow.
  5. Durable mini targets & heavy-duty build: Includes four high-performance mini targets that require no electronic components or batteries, reducing maintenance needs. The system is designed for rigorous daily use in professional garages, supporting wheelbases of up to 4500mm and track widths of up to 2500mm.

Additional information

Weight 20 lbs
Dimensions 20 × 10 × 15 in
Model

BLS WA6023AUTO PRO
Motor power

110~220v 50/60Hz
